We should look at thecoil diagram below to see how to make this motor rotate. This 28BYJ-48 is a 5V unipolar geared stepper motor, manufactured by the boatload for the HVAC control industry, where youll find these little units as actuators for airflow control in ducts and vanes. This article is going to cover the differences between WS2811 and WS2812B from the perspective of their advantages, pinout, voltage, and more details.
MikroElektronika is a renowned producer of a wide range of development tools and compilers for various microcontroller families.

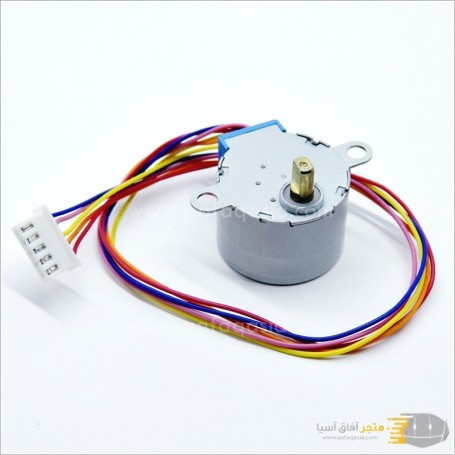

5v 28byj stepper motor uln2003 controller One end of all the coils are connected to +5V (red) wire and the other end of each coil is pulled out as wire colours Orange, Pink, Yellow and Blue respectively. A pair of low-force omnidirectional tactile sensors, FULL Step mode: 821gmf*cm (11.4in*oz) @ 200mA draw, HALF Step mode: 598gmf*cm (8.3in*oz) @ 256mA draw, 4-phase unipolar stepper wiring through 23cm (9) long cable to 5-pin connector (0.1 pitch). The connections are simple. The 28-BYJ48 Stepper Motors have a four-coil unipolar configuration with each coil rated at what? The coil is retained at +5V in this case, and because both ends of the coil are at +5V (red and other ends), the coil will not be energized. The specifications of the S8BYJ-48 stepper motor are: The stepper motor is silent and provide more increments per rotation. Furthermore, these two kinds of stuff are in stock. What it turned out to be is a pretty cool, inexpensive geared stepper motor, ideal for a bunch of low-torque applications. You can see from the diagram given below 5 wires are projecting out from the motor. 28byj stepper 5v uln2003

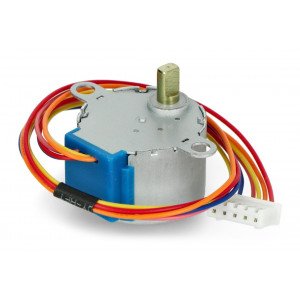

stepper 28byj uln2003 botland 5v The 28-BYJ48Stepper Motors are one of the most popular stepper motors on the market. This item was manufactured prior to August 31, 2018. The motor is internally geared with a ratio of about 64:1 (more precisely 63.68395:1). View cart for details.
When you sign up or start placing an order you will be asked to enter the personal data we need to process and fulfill your order. Welcome your RFQ! The Secret L293D motor driver kit replaces the guts of a standard servo and turns it into tidy gear motor with a built in motor driver! stepper 28byj programmable

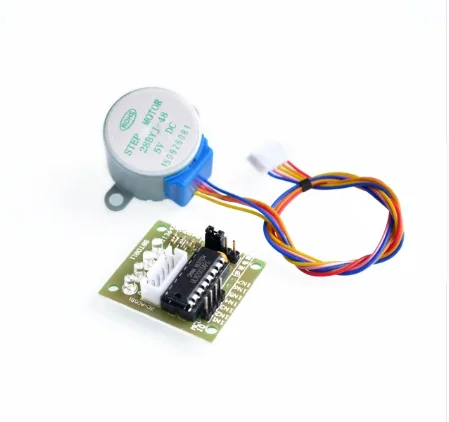

28byj stepper uln2003 Therefore, you can use this motor in driving display turntables and surveillance cameras. These motors have a stride angle of 5.625/64, which implies that it will take the motor64steps to complete one spin, and each step will span 5.625, implying a high level of control. The red wire should then be connected to ground (GND), orange/pink to M1 (or similar) and blue/yellow to M2 (or similar). Where to use 28BYJ-48 Stepper Motor pinout? 28BYJ-48 stepper motor and ULN2003 Arduino (Quick tutorial for beginners), This Motor has a total of four coils. item 1 28BYJ-48 High Quality Stepper Motor 5V, item 2 28BYJ-48 Valve Gear Stepper Motor DC5V 12V 4 Phase Step Motor module for Arduino, item 3 24BYJ48 DC 5V 12V 4 Phase 5 Wire Gear Stepper Motor Mini Reduction Arduino Board, item 4 5 Pack Geared Stepper Motor 28BYJ-48 5V Stepper Motor + Uln2003 Driver Board, item 5 28BYJ48 DC 12V 4 Phase 5 Wire Gear Stepper Motor Mini Reduction Arduino Board, item 6 28BYJ-48 Valve Gear Stepper Motor DC 5V 4 Phase Step Motor Reduction For Arduino, item 7 2PCS Stepper Motor Driver Board Module ULN2003 for 5V 28BYJ-48 Arduino, item 8 2Sets 28BYJ-48-5V DC 4-phase Stepper Motor+ ULN2003 Driver Board for Arduino, 5.0 out of 5 stars based on 3 product ratings, 5.0 out of 5 stars based on 1 product rating, 5.0 out of 5 stars based on 2 product ratings, 4.6 out of 5 stars based on 20 product ratings.
As can be seen, the motor has four coils, one of which is connected to +5V (Red) while the others (Orange,Pink,Yellow, andBlue ) are taken out like wires. The two-dimensional diagram showing all the dimensions of this stepper motor is given below. Connect the digital pins of Arduino with the input pins of the ULN2003A driver IC. This particular stepper motor might be too small to build an industrial strength laser cutting machine but it certainly can be used to build a plotter to do some drawing. 5v stepper 28byj motor unipolar This is the higher-torque / lower speed 64:1 version. attributes, This article mainly introduces equivalent, pinout, application, and other detailed information about Murata Electronics CR1632. Current slide {CURRENT_SLIDE} of {TOTAL_SLIDES}- Best Selling in Stepper Motors, Current slide {CURRENT_SLIDE} of {TOTAL_SLIDES}- You may also like, {"modules":["unloadOptimization","bandwidthDetection"],"unloadOptimization":{"browsers":{"Firefox":true,"Chrome":true}},"bandwidthDetection":{"url":"https://ir.ebaystatic.com/cr/v/c1/thirtysevens.jpg","maxViews":4,"imgSize":37,"expiry":300000,"timeout":250}}. The ULN2003 breakout board has high current and voltage than a single transistor and therefore it can drive a stepper motor easily by enabling a microcontroller. Frbestllda order kan hmtas p vrt lager. The motor has a four-coil unipolar configuration with each coil rated at+5 V, making it simple to control with any basic microcontroller. The coils should be powered in a logical sequence mentioned in the table.
uln2003 stepper keyestudio arduino 5v 28byj myduino Copyright 1995-2022 eBay Inc. All Rights Reserved. Originally designed for control of HVAC vanes and similar low-demand equipment, these stepper-motor gearboxes have lots of hacking potential. The half-step method is recommended for driving this stepper motor. What is one of the most popular stepper motors on the market? We had some of these drop on our desk a while back with a You gotta find more of these! message taped to it. We should supply +5V to this wire, this voltage will appear across the coil that is grounded. You can achieve positional control easily without needing extra circuitry and components.
MikroElektronika MIKROE-1530 technical specifications,
The motor has a four-coil unipolar configuration with each coil rated at +5 V, making it simple to control with any basic microcontroller. stepper 28byj 5v motor gearbest keyes diy You can see what cookies we serve and how to set your preferences in our (Read more about how we handle personal data here).
Only when the coils are energized (grounded) in a logical order can a stepper motor operate. Stepper motors are ideal for building systems where accuracy is important such as controlling the position of a laser cutter, router, or other precision tool.
A microcontroller or a digital circuit can be used to program this logical sequence.
This motor has four coils which are powered in a sequence.
Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Term & Condition CR refers to lithium manganese round batteries, 2032 means 20 mm in diameter and 3.2 mm in thickness, and 2450 means 24 mm in diameter and 5 mm in thickness. You can use this motor in designing projects using raspberry pi and Arduino etc. In the half-step method, coil 1 is powered first. Privacy Policy The 28BYJ-48 Stepper Motors are one of the most commonly used stepper motors. Cookies Policy, These or similar motors can be found in DVD drives, motion cameras, and a variety of other devices. For owners of Sumovores purchased prior to May 2005, this kit solidifies your Sumovore with a powder-coated steel baseplate! This model is normally used in the manufacturing of air-conditioners, automatic window blinds and other applications where high torque is more important than high speed. According to the COMSAN battery standard, the sizes of the CR2450 and CR2032 are different. The statistics is only presented to us in an anonymized format. The value of pull in torque for a stepper motor is 300 gf.cm. Specifications:* Rated voltage: 5VDC* Number of poles: 4* Gear ratio: 64:1* Rotations / step (stride angle): 5.625 (/64)* Steps / revolution: 4096* DC resistance: 200ohms 7%* Output shaft: 5mm flat* Connector: JST XH 5-pol 2.5mm* Connection wires: 240mm* Weight: 36g* Dimensions: 28 x 19mm, Stepper motor 28BYJ-48 with driver ULN2003A. A steady +5V supply is delivered to the Red wire, and this +5V will only be across (energize) the coil if the other end of the coil is grounded. These motors are silent in comparison to other DC motors and servo motors. Some features on our website requires cookies as a part of the technical solution to keep track of the users settings.
It has a 1/64 reduction gear set and therefore moves in precise 512 steps per revolution.
It is connected to the +5V supply. if you agree on our use of cookies please click continue. MikroElektronika designs and manufactures complete solutions for PIC, dsPIC30/33, PIC24, PIC32, AVR, 8051, PSoC, as well as Tiva and STM32 ARM Cortex-M microcontrollers. Enter your email address to subscribe to this blog and receive notifications of new posts by email. Solarbotics, Ltd. is not responsible for misprints or errors on product prices or information.For more information, please see our Terms and Conditions. parameters and parts with similar specifications to MikroElektronika MIKROE-1530.
Similarly, "0" indicates that the coil is grounded; now one end will be +5V and the other will be grounded, indicating that the coil is energized. This stepper motor is a popular 5V model 28BYJ-48 that comes with a controller board for use with any 5V microcontroller such as an Arduino or compatible. When browsing and using our website, Utmel also collects, stores and/or processes personal data, please read our The main advantage that stepper motors have is the ability to move to a position accurately without the use of special encoders or other hardware. to find out more. stepper 28byj
The 28BYJ-48 stepper motor provides excellent control of speed during rotation.
Sequence to Rotate in clockwise Direction. CR2450 vs. CR2032: Are they interchangeable? This post mainly unlocks its datasheet, pinout, feature, wiring and more details about the 28BYJ-48.
CR1632 is a lithium coin cell battery. motor stepper 5v 28byj driver
28BYJ-48 5V Stepper Motor: 28BYJ-48 Datasheet, Pinout, Wiring, S8050 NPN Silicon Transistors: Datasheet, Pinout and Equivalent. It can be easily controlled with any microcontroller such as an Arduino. 28byj stepper uln2003 The stepper motor consumes high current therefore a driver IC is required along with a microcontroller or Arduino. Connect the output pins of the driver IC with the four coils of the stepper motor and supply a positive voltage at the red wire of a stepper motor. The table is given below for half step switching sequence. Something went wrong. ESP32 MQTT Publish Subscribe DS18B20 Readings with Arduino IDE, ESP32 MQTT Publish Subscribe BME280 Readings with Arduino IDE, ESP32 MQTT Publish Subscribe DHT22 Readings with Arduino IDE, Install Node-RED on Raspberry Pi (32-bit and 64-bit RPI OS), ESP RainMaker Getting Started Tutorial with ESP32 and Arduino IDE. The gearing isnt the beefiest or most precise weve ever seen, but its adequate for reasonable loads. and Stepper motors can be used for a variety of robot projects. The frequency of this stepper motor is 100Hz and insulated power is 600VAC/1mA/1s.
Thats why it is used in robotics projects and applications related to automation. Utmel uses cookies to help deliver a better online experience.
It has 4 phases with a stride angle of 5.625/64. These motors, however, only run on 5V and so cannot generate high torque; for high torque applications, theNema17 motors should be considered. Microcontrollerslab.com All Rights Reserved, 28BYJ-48 5V Stepper Motor Pin Configuration. 28byj stepper The motor can be used together with all stepper motor drivers for unipolar motors. stepper 28byj uln2003 makertechstore LR44 vs. 357: Are LR44 and 357 cells interchangeable? This article mainly covers datasheet, pinout, equivalents, applications, and other details about S8050. Being a stepper motor, youll need a motor driver circuit. microcontroller stepper Follow the same sequence in the next steps.
Copyright 2013-2022 Williams and Wang LLC - All Rights Reserved. You can use the full step method for rotation, but half step method is recommended for rotation of this stepper motor. Low-cost stepper motor for 5V. Although LR44 and 357 batteries look the same shape, they perform differently. Today, this article is going to explain what differences lie in and whether they can interchangeable. This picture shows a pinout diagram of 28BYJ-48 5V Stepper Motor. The CdS is a light sensitive resistor offering a range of 160 ohm to 700k sensitivity. 28byj stepper If you need both rotation and positional control, then you can use this stepper motor. stepper 28byj
This sequence can be programmed using any microcontroller. 28byj 48 motor stepper 5v Only logged in customers who have purchased this product may leave a review. 28byj stepper 5v module A stepper motor converts digital pulses into small steps of movement in a forward or backward direction. In the case of a full step method, 2 coils are provided with power at each step. It moves only one step at a time but can rotate indefinitely as the step sequence is repeated. uln2003 5v 28byj stepper

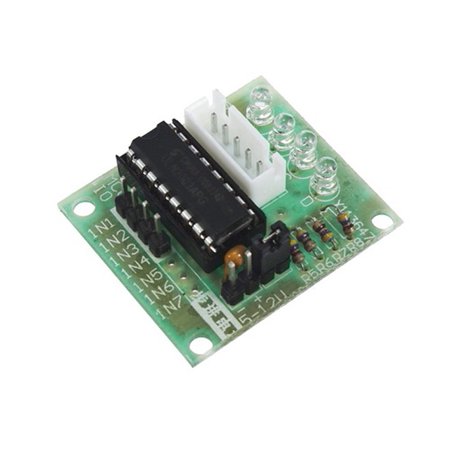

28byj stepper 5v There are many ways to drive a stepper, but this ULN2003 driver board is specifically designed to drive these 5V stepper gear motors. Vr fysiska butik r stngd. stepper 5v 28byj uln2003 Hello everyone, I am Rose. The tilting of car side mirrors can be controlled using these motors.
CR1632 Battery: Equivalent, Pinout and Application. Surveillance cameras and DVD players are also their applications. They are used in cameras for providing precise control and positioning. Please visit www.P65Warnings.ca.gov for more information. It is a unipolar 5 pin coil with a rated DC voltage of 5V. The 5V Stepper Motor with Driver 28BYJ-48 has everything you need to start using stepper motors in your project. 28byj stepper
Can also easily be driven by discrete transistors or a darlington driver (ULN2003).
You can use this motor in 3D printers for precise positioning. stepper 5v 28byj 2e300 Thesestepper motors draw a lot of currents, hence a driver IC like the ULN2003 is required.
After then supply power to both coil 1 and coil 2 together. Copyright 2013-2022 Among them, red wire is for voltage supply. stepper 28byj unipolar servo uln2003 krokowy silnik xcluma tindie propix bazaargadgets Thanks to Graham Wideman for his additional in-depth analysis of these gear motors. These motors are widely found inDVD players, motion cameras, and other similar devices. We do also use Google Analytics to get statistics of how our website is used, in order to make the site more user friendly and to enhance our advertising. The table below shows the order in which each coil should be triggered. In this article, we will discuss whether CR2450 and CR2032 are interchangeable. Then supply power to coil 2. Commentdocument.getElementById("comment").setAttribute("id","a692bb1b2a02e3b5d511f729d02179d3");document.getElementById("c0eb03b5bb").setAttribute("id","comment"); Notify me of follow-up comments by email. S8050 is an NPN, a general-purpose transistor. The LR44 is an Alkaline Zinc Manganese button cell battery, whereas, the 357 is a silver oxide button cell battery. Due to its capability of providing positional control, you can use this stepper motor in the tracking of objects. 28BYJ-48 is a uni-polar 5V stepper motor that takes electrical signals as input and rotates by converting these input signals into the mechanical rotation. The remaining four wires are of four static coils. It consists of 4 stationary coils rated at +5V. Today I will introduce CR1632 to you. Home 28BYJ-48-64 64:1 Stepper Gearmotor. Although they are both lithium batteries, can they be interchangeable? Download datasheets and manufacturer documentation for MikroElektronika MIKROE-1530. MikroElektronika MIKROE-1530 global regional popularity ranking. These coils are known as a stator and make a ring around the rotor. 28byj stepper 5v motor motor stepper 28byj 5v 12v emartee The WS2811 is a simple RGB LED strip. It features a 5mm Double-D shaft, mounting lugs, and a nice 5-conductor 0.1 pitch connector.
